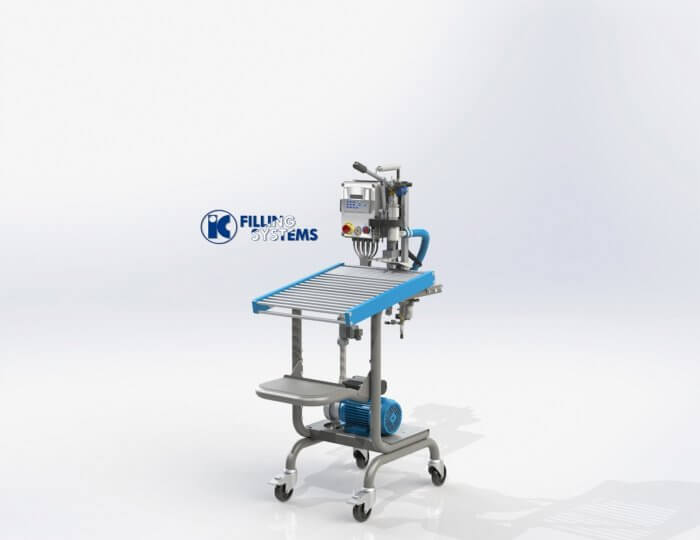

BIB EASY manual bag in box filling machine
Semi-manual bag in box filling machine for vacuum bags (Gravity filling)
BIB Easy Bag in Box Characteristics
Modern and an outstanding performer, the BIB EASY semi-manual bag in box filling machine is perfect for the small and medium-sized production of BIB-type vacuum bags from 2 to 20 litres and Pouches from 1.5 to 3 litres.
The standard BIB EASY bag in box filling machine comes without chassis or pump and is gravity fed. In option, the machine can be driven by a product feed pump to increase the work rate.
Checking...
Retry »
Sending message...
Download Bag in Box Brochures
We'll send links to download our range of Bag in Box Brochures to your inbox right away...
BIB Easy Technical Characteristics
- Operation in three steps: manual removal of tap, start of automatic cycle at filling head (air removal from pouch, metering and filling, injection, blowing of nitrogen at end of cycle), manual reinsertion of tap.
Compact Bag in Box filling machine, efficient and very easy to use
BIB Easy Work Rate
Bib
| 3 L | 180 filling rate /hour |
| 5 L | 140 filling rate /hour |
| 10 L | 90 filling rate /hour |
| 15 L | 60 filling rate /hour |
| 20 L | 50 filling rate /hour |
Pouch
| 1.5 L | 170 filling rate /hour |
| 3 L | 110 filling rate /hour |
BIB Easy Characteristics
- Liquid flow: by gravity
- Air supply: 6 to 6.5 bars
- Air flow: 0.25 m³/h
- Power supply: 230 V 50 Hz.
- Pulse counter (72 points per litre)
- Connection: liquid input through Macon 40 diameter male connector
- Noise level < 80 db
- Footprint:
- Depth: 760 mm
- Height: 620 mm
- Width: 580 mm
- Weight: 30 kg (without option)
BIB Easy Standard Equipment
- Work surface: tilting stainless steel tray
- Filling/cleaning temperature: liquid circuit in 316 stainless steel for continuous use up to 45°C
- Pliers type: for Vitop®-type taps with a high neck
- Filling head: integral closing with hygienic screw tip
- Nitrogen supply: automated injection at end of filling cycle
- Separate vacuum and nitrogen circuits
- Timed vacuuming with limited depression power
- CIP circuit: with automated cleaning of the vacuum circuit
- Connection: Macon diameter 40
- Display: multifunctional
- Automatic blocking of arm
