Semi-Automatic Bottling Equipment & Filling Equipment

This video shows a complete semi automatic bottling line for beer or cider or soft drinks and shows left to right the following equipment.

Maximum hourly output 500 bottles per hour on 330 ml glass bottles.

The 3 x 150 Litre tanks one heated for caustic soda treatment, one cold water tank for rinsing and one tank for peracetic acid for sterilising bottles

2 x 500 litres chilled tanks to maintain product ready to bottle at constant 2C with electric paddle for soft drinks preparation.

In line carbonator capable of 500 litres of product per hour with infeed and outfeed pump. Optional flowmeter with lance to fill beer kegs .

6-6-2 rinser filler capper ( 6 rinsing heads with no bottle no rinse device, 6 counterpressure filling valves and two capping crown heads with automatic hopper) . Recycling unit for rinser with peracetic solution for sterilising the bottles.

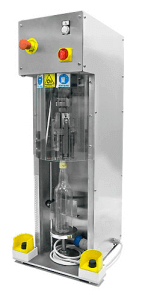

Stand alone single head capping machine for metal ROPP closures with manual cap feeding .

Pasteurising bath with cages and crane capable of 1,000 bottles per cycle.

Table top semi automatic labelling machine with automatic bottle feeder and date coder with hot foil stamping.
