[SOLD] New Small Batch pasteurizing unit available from IC Filling Systems
Small Batch pasteurizing unit available New
without crane (available on request) and with 4 RIGID cages in 304 stainless steel certified for safety lifting. Price On Application, available ex stock.
A brand New semi automatic pasteurising unit capable of processing 500 bph depending on cycle.

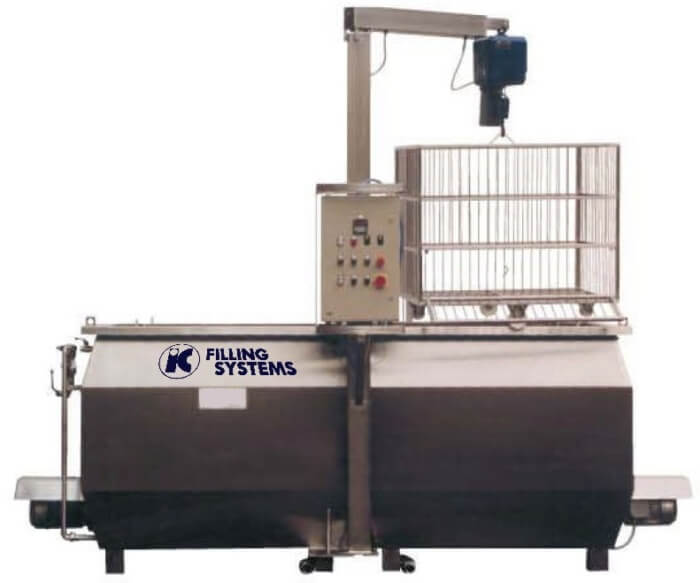

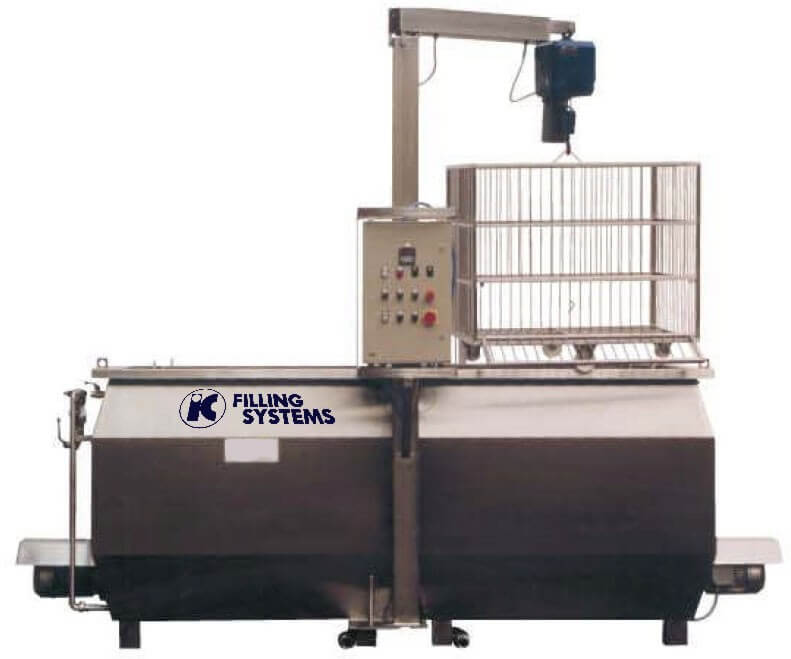

Bath Pasteuriser
with crane
with crane
Pasteurization tank for 250 ml bottles featuring:
- stainless steel AISI 304 with - adjustable feet

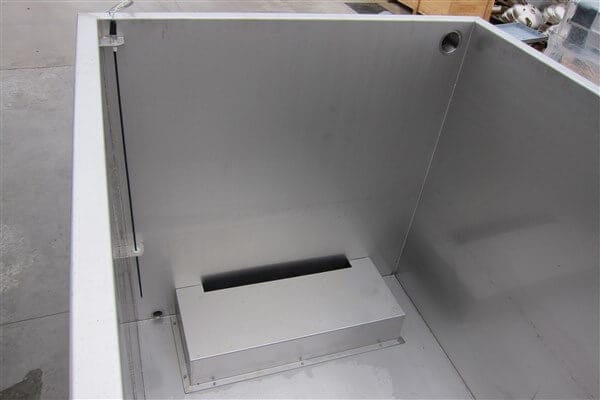

- internal dim:1300x1500 mm H 1200 mm - external dim: 1500x1700 mm H 1200 mm - 50 mm external insulation, welded coated type
- 1 s/steel cage loading capability;
- DN 50 DIN bottom - up with exhausting valve - 25 kW Electric in-water heating system ; 0.5 KW water pump - T 3-400-50 Power Consumption: 25.5 KW
- Q.E. PVC case , IP 55 - door locking switch - emergency button - resistors switch - pump switch - electronic temperature controller (to control and command the work programme)

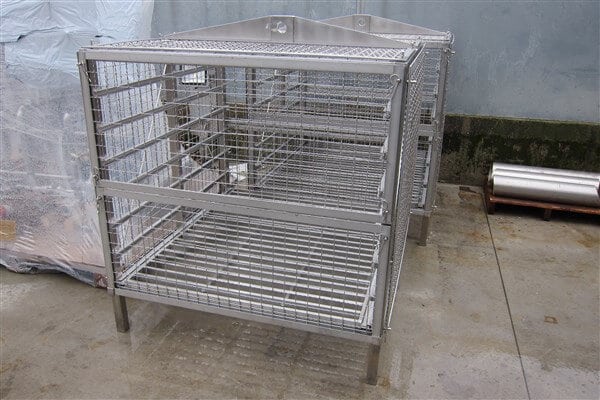

Pasteurization cages for bottles (four units)
- stainless steel 304 fixed cages (not foldable) CERTIFIED EC For lifting safety regulations , suitable for hot or cold water immersion -dimensions: 1200x1200 mm H 1100 mm .
Bath Pasteuriser
with crane
with crane
Bath Pasteuriser
with crane
with crane
Bath Pasteuriser
with crane internal
with crane internal

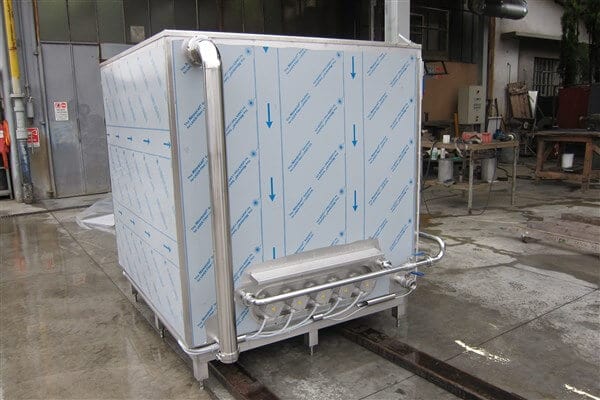

Bath Pasteuriser
with crane external
with crane external

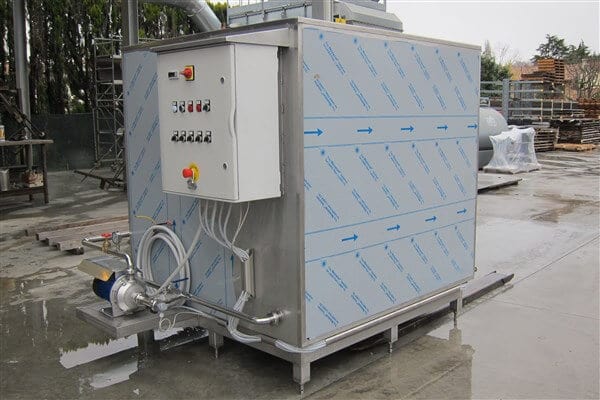

operating position

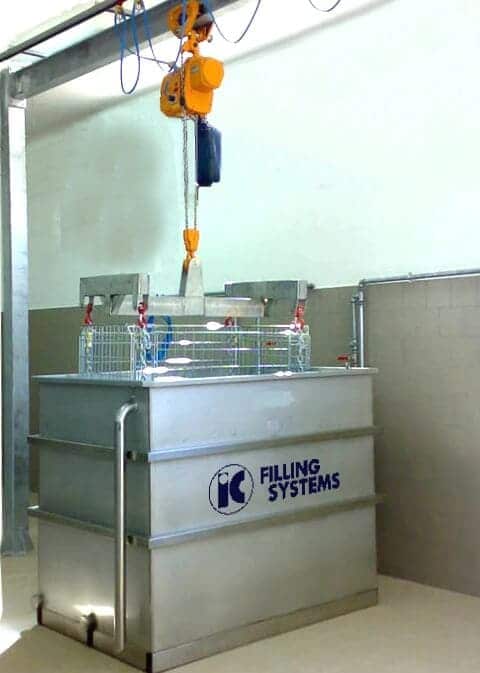

pasteurizer with crane
pasteurizer with crane
Bath Pasteuriser
with crane
with crane
